產品描述

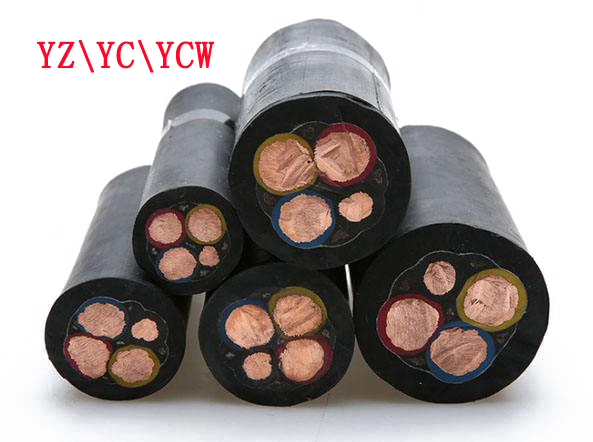

通用橡套電纜YQW YZW YCW
一、產品型號
型號 | 名稱 | 主要用途 |
YQ、YQW | 輕型橡套軟電纜 | 用于輕型移動電器和工具 |
YZ、YZW | 中型橡套軟電纜 | 用于各種移動電器和工具 |
YC、YCW | 重型橡套軟電纜 | 用于各種移動電器設備，能承受較大的機械外力作用 |
二、產品執行標準
產品執行GB/T5013-2008《額定電壓450/750V及以下橡皮絕緣電纜》
三、產品應用范圍
通用橡套軟電纜是由多股的細銅絲為導體，外包橡膠絕緣和橡膠護套的一種柔軟可移動的電纜品種。 一般來講，包括通用橡套軟電纜，電焊機電纜，潛水電機電纜，無線電裝置電纜和攝影光源電纜等品種。
橡套電纜廣泛使用于各種電器設備，例如日用電器、電動機械、電工裝置和器具的移動式電源線，同時可在室內或戶外環境條件下使用。根據電纜所受的機械外力,在產品結構上分為輕型、中型和重型三類，在截面上也有適當的銜接，一般輕型橡套電纜使用于日用電器，小型電動設備，要求柔軟、輕巧、彎曲性能好；中型橡套電纜除工業用外，廣泛用于農業電氣化中，重型電纜用于如港口機械，探照燈，農業大型水力排灌站等場合。這類產品具有良好的通用性，系列規格完整，性能良好和穩定。
四、產品技術參數表
300/300V YQ、YQW輕型橡套軟電纜結構參數
標稱截面 mm2 | 導電線芯 根數/直徑 mm | 絕緣標稱 厚度 mm | 護套標稱 厚度 mm | 平均外徑 mm | 電纜重量 kg/km | 20℃時導體電阻不大于Ω/km | |||
下限 | 上限 | YQ | YQW | 銅芯 | 鍍錫銅芯 | ||||
2*0.3 | 16/0.15 | 0.5 | 0.7 | 4.6 | 6.6 | 26.0 | 26.8 | 69.2 | 71.2 |
2*0.5 | 28/0.15 | 0.5 | 0.7 | 5.0 | 7.2 | 34.2 | 35.0 | 39.0 | 40.1 |
3*0.3 | 16/0.15 | 0.5 | 0.7 | 4.8 | 7.0 | 33.5 | 34.3 | 69.2 | 71.2 |
3*0.5 | 28/0.15 | 0.5 | 0.7 | 5.2 | 7.6 | 45.0 | 46.8 | 39.0 | 40.1 |
300/500V YZ、YZW中型橡套軟電纜結構參數
標稱截面 mm2 | 導電線芯 | 絕緣 標稱 厚度 mm | 護套 標稱 厚度 mm | 平均外徑 mm | 20℃時導體電阻不大于Ω/km | 電纜重量 kg/km | |||
根數/ 直徑 mm | 下限 | 上限 | 銅芯 | 鍍錫銅芯 | YZ | YZW | |||
2*0.75 | 24/0.20 | 0.6 | 0.8 | 8.2 | 6.0 | 26.0 | 26.7 | 59.1 | 60.9 |
2*1.0 | 32/0.20 | 0.6 | 0.9 | 8.8 | 6.6 | 19.5 | 20.0 | 70.8 | 72.9 |
2*1.5 | 30/0.25 | 0.8 | 1.0 | 10.5 | 8.0 | 13.3 | 13.7 | 103.3 | 106.5 |
2*2.5 | 49/0.25 | 0.9 | 1.1 | 12.5 | 9.5 | 7.98 | 8.21 | 152.0 | 156.4 |
2*4 | 56/0.30 | 1.0 | 1.2 | 14.0 | 11.0 | 4.95 | 5.09 | 217.3 | 223.2 |
2*6 | 84/0.30 | 1.0 | 1.3 | 17.0 | 12.5 | 3.30 | 3.39 | 308.1 | 316.2 |
3*0.75 | 24/0.20 | 0.6 | 0.9 | 8.8 | 6.5 | 26.0 | 26.7 | 74.0 | 75.9 |
3*1 | 32/0.20 | 0.6 | 0.9 | 9.2 | 7.0 | 19.5 | 20.0 | 85.8 | 87.8 |
3*1.5 | 30/0.25 | 0.8 | 1.0 | 11.0 | 8.6 | 13.3 | 13.7 | 129.7 | 132.7 |
3*2.5 | 49/0.25 | 0.9 | 1.1 | 13.0 | 10.0 | 7.98 | 8.21 | 190.3 | 194.5 |
3*4 | 56/0.30 | 1.0 | 1.2 | 14.5 | 11.5 | 4.95 | 5.09 | 273.8 | 279.4 |
3*6 | 84/0.30 | 1.0 | 1.3 | 18.0 | 13.0 | 3.30 | 3.39 | 389.2 | 396.8 |
4*0.75 | 24/0.20 | 0.6 | 0.9 | 9.6 | 7.1 | 26.0 | 26.7 | 89.7 | 91.7 |
4*1 | 32/0.20 | 0.6 | 0.9 | 10.0 | 7.6 | 19.5 | 20.0 | 104 | 106.2 |
4*1.5 | 30/0.25 | 0.8 | 1.1 | 12.5 | 9.6 | 13.3 | 13.7 | 162.2 | 1966 |
4*2.5 | 49/0.25 | 0.9 | 1.2 | 14.0 | 11.0 | 7.98 | 8.21 | 295.6 | 300.4 |
4*4 | 56/0.30 | 1.0 | 1.3 | 16.5 | 13.0 | 4.95 | 5.09 | 419 | 425.3 |
4*6 | 84/0.30 | 1.0 | 1.4 | 20.0 | 14.5 | 3.30 | 3.39 | 491.5 | 499.9 |
3*1.5+1*1.0 | 30/0.25+32/0.20 | 0.8/0.6 | 1.1 | 12.0 | 9.4 | 13.3 | 13.7 | 149.3 | 152.5 |
3*2.5+1*1.5 | 49/0.25+30/0.25 | 0.9/0.8 | 1.2 | 14.0 | 11.0 | 7.98 | 8.21 | 218.3 | 222.6 |
3*4+1*2.5 | 56/0.30+49/0.25 | 1.0/0.9 | 1.3 | 16.0 | 13.0 | 4.95 | 5.09 | 318.4 | 324.4 |
3*6+1*4 | 84/0.30+49/0.25 | 1.0/1.0 | 1.4 | 19.5 | 14.5 | 3.30 | 3.39 | 458.6 | 466.6 |
5*0.75 | 24/0.20 | 0.6 | 1.0 | 11.0 | 8.0 | 26.0 | 26.7 | 111.6 | 114 |
5*1 | 30/0.20 | 0.6 | 1.0 | 11.5 | 8.5 | 19.5 | 20.0 | 130.1 | 132.7 |
5*1.5 | 30/0.25 | 0.8 | 1.1 | 13.5 | 10.5 | 13.3 | 13.7 | 196.8 | 200.5 |
5*2.5 | 49/0.25 | 0.9 | 1.3 | 15.5 | 12.5 | 7.98 | 8.21 | 296.5 | 301.9 |
5*4 | 56/0.30 | 1.0 | 1.4 | 10.0 | 14.5 | 4.95 | 5.09 | 429.1 | 436.2 |
5*6 | 84/0.30 | 1.0 | 1.6 | 22.5 | 16.5 | 3.30 | 3.39 | 617.9 | 627.9 |
450/750V YC、YCW重型橡套軟電纜結構參數
標稱截面 mm2 | 導電線芯 | 絕緣 標稱 厚度 mm | 護套 標稱 厚度 mm | 平均外徑 mm | 20℃時導體電 阻不大于Ω/km | 電纜重量 kg/km | |||
根數/直徑 mm | 下限 | 上限 | 銅芯 | 鍍錫銅芯 | YC | YCW | |||
1*1.5 | 30/0.25 | 0.8 | 1.4 | 5.8 | 7.2 | 13.3 | 13.7 | 52.1 | 54 |
1*2.5 | 49/0.25 | 0.9 | 1.4 | 6.4 | 8.0 | 7.98 | 8.21 | 69.5 | 71 |
1*4 | 56/0.30 | 1.0 | 1.5 | 7.4 | 9.0 | 4.95 | 5.09 | 96.6 | 99 |
1*6 | 84/0.30 | 1.0 | 1.6 | 8.0 | 11.0 | 3.30 | 3.39 | 132.8 | 135.7 |
1*10 | 84/0.40 | 1.2 | 1.8 | 9.8 | 12.5 | 1.91 | 1.95 | 211.9 | 216 |
1*16 | 126/0.40 | 1.2 | 1.9 | 11.0 | 14.5 | 1.21 | 1.24 | 283 | 288 |
1*25 | 196/0.40 | 1.4 | 2.0 | 12.5 | 16.5 | 0.780 | 0.795 | 410 | 416 |
1*35 | 276/0.40 | 1.4 | 2.2 | 14.0 | 18.5 | 0.554 | 0.565 | 545 | 553 |
1*50 | 396/0.40 | 1.6 | 2.4 | 16.5 | 21.0 | 0.386 | 0.393 | 734 | 764 |
1*70 | 360/0.50 | 1.6 | 2.6 | 18.5 | 23.5 | 0.272 | 0.227 | 1010 | 1023 |
1*95 | 475/0.50 | 1.8 | 2.8 | 21.0 | 26 | 0.206 | 0.210 | 1291 | 1306 |
1*120 | 608/0.50 | 1.8 | 3.0 | 23.5 | 28.5 | 0.161 | 0.164 | 1558 | 1605 |
1*150 | 756/0.50 | 2.0 | 3.2 | 26.0 | 31.5 | 0.129 | 0.132 | 1937 | 1958 |
1*185 | 125/0.50 | 2.2 | 3.4 | 27.0 | 34.5 | 0.106 | 0.108 | 2330 | 2353 |
1*240 | 1221/0.50 | 2.4 | 3.5 | 30.5 | 38.0 | 0.0801 | 0.0817 | 2989 | 3017 |
1*300 | 1525/0.50 | 2.6 | 3.6 | 33.5 | 41.5 | 0.0641 | 0.0654 | 3608 | 3640 |
1*400 | 2013/0.50 | 2.8 | 3.8 | 37.5 | 46.5 | 0.0486 | 0.0495 | 4725 | 4762 |
2*1.5 | 30/0.25 | 0.8 | 1.5 | 9.0 | 11.5 | 13.3 | 13.7 | 122 | 126.4 |
2*2.5 | 49/0.25 | 0.9 | 1.7 | 10.5 | 13.5 | 7.98 | 8.21 | 179 | 185 |
2*4 | 56/0.30 | 1.0 | 1.8 | 12.0 | 15.0 | 4.95 | 5.09 | 249 | 257 |
2*6 | 84/0.30 | 1.0 | 2.0 | 13.5 | 18.5 | 3.30 | 3.39 | 352 | 362 |
2*10 | 84/0.40 | 1.2 | 3.1 | 18.5 | 24.0 | 1.91 | 1.95 | 636 | 656 |
2*16 | 126/0.40 | 1.2 | 3.3 | 21.0 | 27.5 | 1.21 | 1.24 | 883 | 909 |
2*25 | 196/0.40 | 1.4 | 3.6 | 25.0 | 31.5 | 0.780 | 0.795 | 1276 | 1310 |
2*35 | 276/0.40 | 1.4 | 3.9 | 27.5 | 35.5 | 0.554 | 0.565 | 1695 | 1741 |
2*50 | 396/0.40 | 1.6 | 4.3 | 32.0 | 41.0 | 0.386 | 0.393 | 2331 | 2392 |
2*70 | 360/0.50 | 1.6 | 4.6 | 36.0 | 46.0 | 0.272 | 0.227 | 3078 | 3155 |
2*95 | 475/0.50 | 1.8 | 5.0 | 40.5 | 50.5 | 0.206 | 0.210 | 3893 | 3985 |
3*1.5 | 30/0.25 | 0.8 | 1.6 | 9.6 | 12.5 | 13.3 | 13.7 | 150 | 153 |
3*2.5 | 49/0.25 | 0.9 | 1.8 | 11.5 | 14.5 | 7.98 | 8.21 | 220 | 226.2 |
3*4 | 56/0.30 | 1.0 | 1.9 | 13.0 | 16.0 | 4.95 | 5.09 | 308 | 316.4 |
3*6 | 84/0.30 | 1.0 | 2.1 | 14.5 | 20.0 | 3.30 | 3.39 | 436 | 447 |
3*10 | 84/0.40 | 1.2 | 3.3 | 20.0 | 25.5 | 1.91 | 1.95 | 790 | 811 |
3*16 | 126/0.40 | 1.2 | 3.5 | 22.5 | 29.5 | 1.21 | 1.24 | 1051 | 1077 |
3*25 | 196/0.40 | 1.4 | 3.8 | 26.5 | 34.0 | 0.780 | 0.795 | 1527 | 1563 |
3*35 | 276/0.40 | 1.4 | 4.1 | 29.5 | 38.0 | 0.554 | 0.565 | 2029 | 2075 |
3*50 | 396/0.40 | 1.6 | 4.5 | 34.5 | 43.5 | 0.386 | 0.393 | 2805 | 2866 |
3*70 | 360/0.50 | 1.6 | 4.8 | 39.0 | 49.5 | 0.272 | 0.227 | 3573 | 3640 |
3*95 | 475/0.50 | 1.8 | 5.3 | 44.0 | 54.0 | 0.206 | 0.210 | 4734 | 4829 |
3*120 | 608/0.50 | 1.8 | 5.6 | 48.0 | 59.0 | 0.161 | 0.164 | 5784 | 5893 |
3*150 | 756/0.50 | 2.0 | 6.0 | 53.0 | 66.5 | 0.129 | 0.132 | 7126 | 7256 |
4*1.5 | 30/0.25 | 0.8 | 1.7 | 10.5 | 13.5 | 13.3 | 13.7 | 190 | 194.5 |
4*2.5 | 49/0.25 | 0.9 | 1.9 | 12.5 | 15.5 | 7.98 | 8.21 | 277 | 284 |
4*4 | 56/0.30 | 1.0 | 2.0 | 14.5 | 18.0 | 4.95 | 5.09 | 414 | 424.8 |
4*6 | 84/0.30 | 1.0 | 2.3 | 16.5 | 22.0 | 3.30 | 3.39 | 559 | 571 |
4*10 | 84/0.40 | 1.2 | 3.4 | 21.5 | 28.0 | 1.91 | 1.95 | 987 | 1609 |
4*16 | 126/0.40 | 1.2 | 3.6 | 24.5 | 32.0 | 1.21 | 1.24 | 1418 | 1346 |
4*25 | 196/0.40 | 1.4 | 4.1 | 29.5 | 37.5 | 0.780 | 0.795 | 1951 | 1991 |
4*35 | 276/0.40 | 1.4 | 4.4 | 33.0 | 42.0 | 0.554 | 0.565 | 2589 | 2640 |
4*50 | 396/0.40 | 1.6 | 4.8 | 38.0 | 48.5 | 0.386 | 0.393 | 3578 | 3646 |
4*70 | 360/0.50 | 1.6 | 5.2 | 43.0 | 55.0 | 0.272 | 0.277 | 4779 | 4863 |
4*95 | 475/0.50 | 1.8 | 5.9 | 49.0 | 60.5 | 0.206 | 0.210 | 6130 | 6235 |
4*120 | 608/0.50 | 1.8 | 6.0 | 53.0 | 65.5 | 0.161 | 0.164 | 7436 | 7556 |
4*150 | 756/0.50 | 2.0 | 6.5 | 59.0 | 74.0 | 0.129 | 0.132 | 9172 | 9322 |
3*2.5+1*1.5 | 49/0.25+30/0.25 | 0.9/0.8 | 2.0 | 12.5 | 15.5 | 7.98 | 8.21 | 261 | 267.7 |
3*4+1*2.5 | 56/0.30+49/0.25 | 1.0/0.9 | 2.0 | 14.5 | 17.5 | 4.95 | 5.09 | 363 | 371 |
3*6+1*4 | 84/0.30+56/0.30 | 1.0/1.0 | 2.2 | 16.0 | 21.0 | 3.30 | 3.39 | 511 | 522 |
3*10+1*6 | 84/0.40+84/0.30 | 1.2/1.0 | 3.0 | 20.5 | 26.5 | 1.91 | 1.95 | 858 | 878 |
3*16+1*6 | 126/0.40+84/0.30 | 1.2/1.0 | 3.5 | 23.0 | 30.5 | 1.21 | 1.24 | 1143 | 1168 |
3*25+1*10 | 196/0.40+84/0.40 | 1.4/1.2 | 4.0 | 26.0 | 35.5 | 0.780 | 0.795 | 1708 | 1744 |
3*35+1*10 | 276/0.40+84/0.40 | 1.4/1.2 | 4.0 | 30.0 | 38.5 | 0.554 | 0.565 | 2159 | 2202 |
3*50+1*16 | 396/0.40+126/0.40 | 1.6/1.2 | 5.0 | 36.0 | 46.0 | 0.386 | 0.393 | 3085 | 3147 |
3*70+1*25 | 360/0.50+196/0.40 | 1.6/1.4 | 5.0 | 40.0 | 51.0 | 0.272 | 0.277 | 4064 | 4138 |
3*95+1*35 | 475/0.50+276/0.40 | 1.8/1.4 | 5.0 | 44.0 | 55.0 | 0.206 | 1.210 | 5095 | 5179 |
3*120+1*35 | 608/0.50+276/0.40 | 1.8/1.4 | 5.0 | 46.5 | 59.0 | 0.161 | 1.164 | 6019 | 6113 |
3*150+1*50 | 756/0.50+396/0.40 | 2.0/1.6 | 5.0 | 52.0 | 66.0 | 0.129 | 0.132 | 7445 | 7559 |
5*1.5 | 30/0.25 | 0.8 | 1.8 | 11.5 | 15.0 | 13.3 | 13.7 | 231 | 237 |
5*2.5 | 49/0.25 | 0.9 | 2.0 | 13.5 | 17.0 | 7.98 | 8.21 | 337 | 345 |
5*4 | 56/0.30 | 1.0 | 2.2 | 16.0 | 19.5 | 4.95 | 5.09 | 484 | 494 |
5*6 | 84/0.30 | 1.0 | 2.5 | 18.0 | 24.5 | 3.30 | 3.39 | 694 | 708 |
5*10 | 84/0.40 | 1.2 | 3.6 | 24.0 | 31.0 | 1.91 | 1.95 | 1210 | 1236 |
5*16 | 126/0.40 | 1.2 | 3.9 | 27.0 | 35.5 | 1.21 | 1.24 | 1632 | 1664 |
5*25 | 196/0.40 | 1.4 | 4.4 | 32.5 | 41.5 | 0.780 | 0.795 | 2408 | 2454 |
